Field Names

DocSpring uses the JSON Pointer syntax for field names. This means that you can describe the shape of your API by using a forward slash (/) to define object keys and array indexes. (Object keys and array indexes use the same syntax.)

Please note that fields names are case sensitive. firstName and firstname will be treated as two separate fields.

Note

If you need to use / or ~ in your field names, then you can escape / as ~1, and ~ as ~0. (See the JSON Pointer reference.)

Multiline Fields

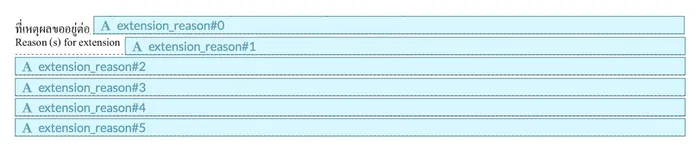

To control line spacing and indentation, you can create multiple fields with the same name, and append #n to the field name, where n is the line index.

In the following example, extension_reason is a single field in the API request, but the text will automatically wrap across lines 0 to 5.

Note

Note: You can also create a simple multiline field by adjusting your field height to fit multiple lines, and checking Multiline in the field options:

Duplicate Names

You can use the same field name more than once. For example, some forms have separate fields for month, day, and year. You can configure three fields that all share the name date, but use different format strings for each field: %-m for month, %-d for day, and %Y for year.

Now you can send a single date value in your API request, and we will show a date picker on the online form.

Special Field Names

DocSpring supports the following special field names:

@@data_url

This field will display a URL where the submission data can be viewed or downloaded. This URL can be displayed as a QR code on the PDF.

You can append .json, .xml, .csv, and .xlsx to the URL to download your data in various formats.

Note

Note: You can enable unauthenticated access to submission data by setting Submission Privacy to “Public” in the template settings. Otherwise, you must be signed in to view submission data.

@@version

The version of the template that was used to create this submission, e.g. 1.2.3. This will be draft when generating a submission from an unpublished draft template.

@@date

The date when this submission was created.

@@datetime

The date and time when this submission was created.

Special Field Names for Data Requests

@@data_requests/<index>/completed_at

The date and time that the data request was completed (e.g. signed)

@@data_requests/<index>/viewed_at

The date and time that the data request was most recently viewed before completion.

Example Names

Given the following API request:

{
  "parent_object": {
    "nested_object": {
      "foo": "bar"
    }
  },
  "array_of_strings": ["a", "b", "c"],
  "array_of_objects": [{ "color": "blue" }, { "color": "red" }],
  "multiline_field": "This text is so long that we need multiple lines."
}

These field names would have the following values:

Field Name	Value
parent_object/nested_object/foo	”bar”
array_of_strings/0	”a”
array_of_strings/1	”b”
array_of_strings/2	”c”
array_of_objects/0/color	”blue”
array_of_objects/1/color	”red”
multiline_field#0	”This text is so long that”
multiline_field#1	”we need multiple lines.”
